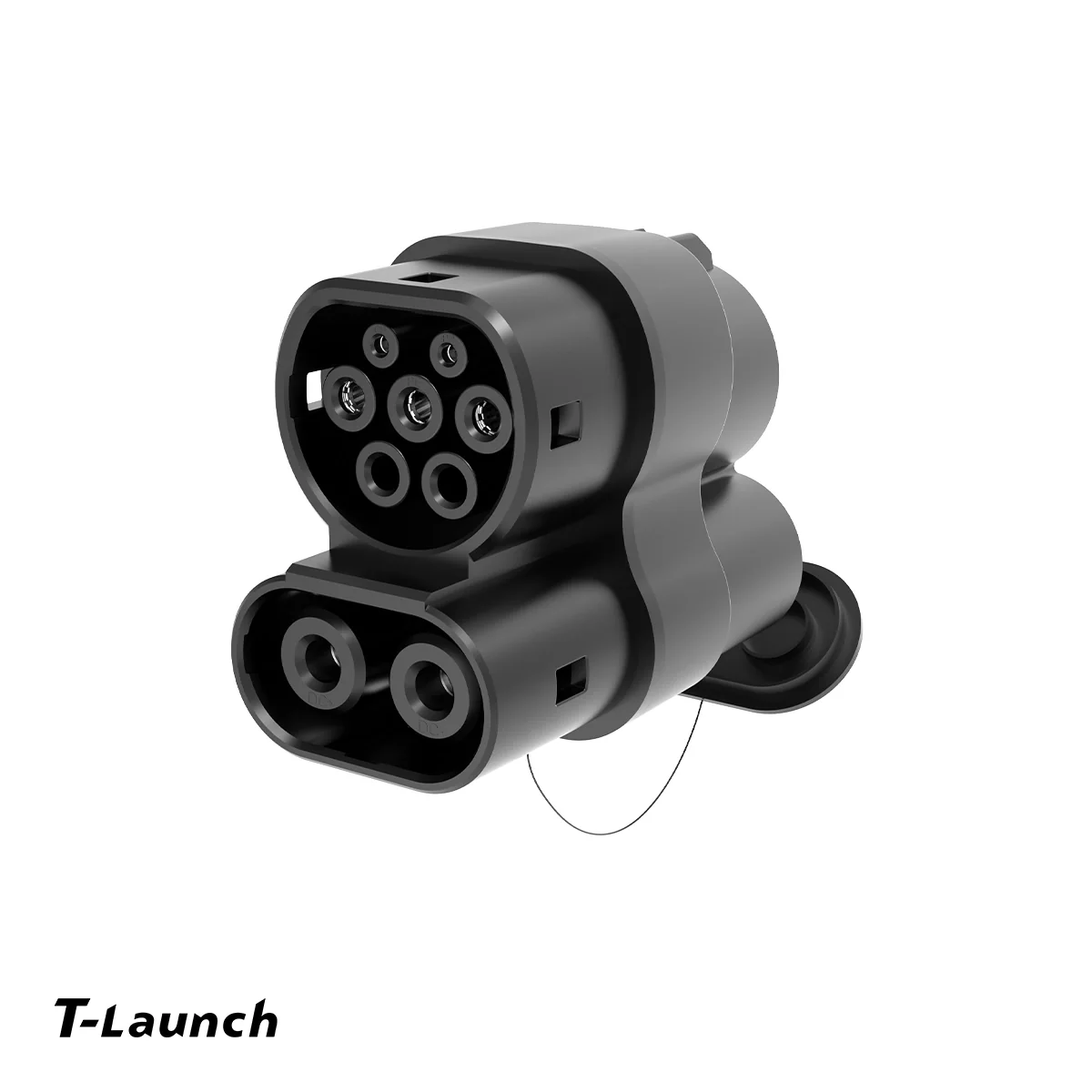

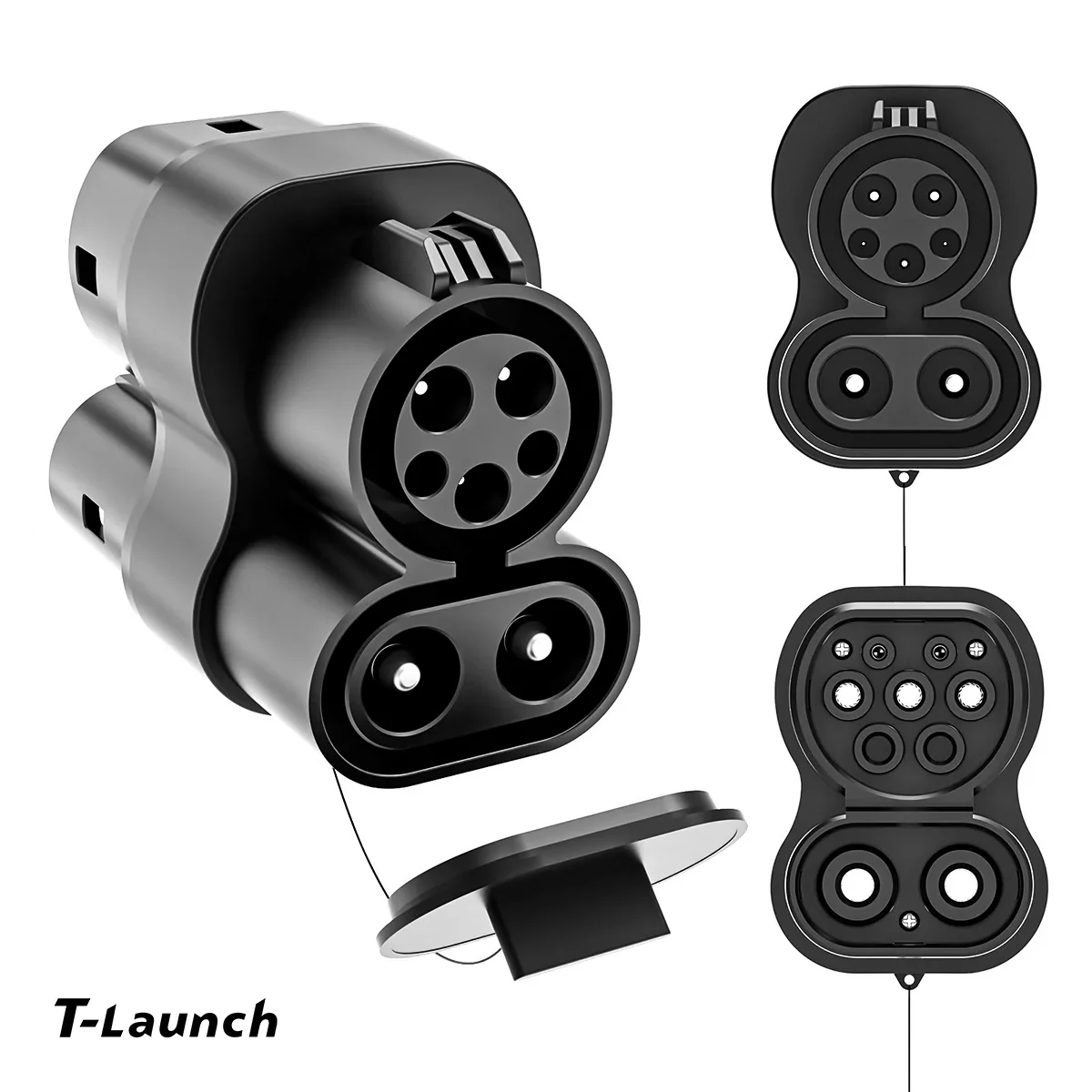

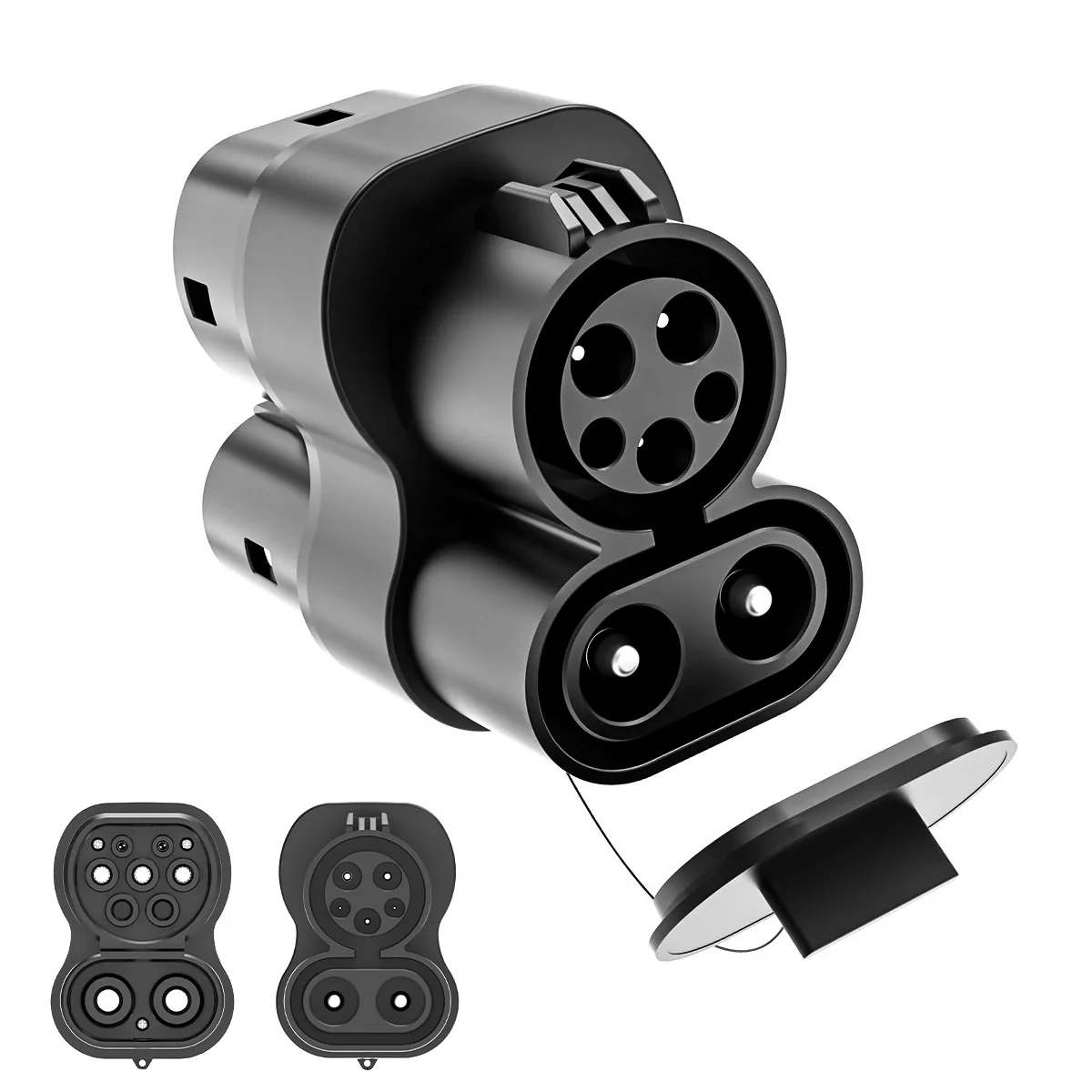

CCS1/Type 1 to CCS2/Type 2 Adapter EV Fast Charging Adapter (AC+DC)

The EV Charger Adapter CCS1/Type 1 to CCS2/Type 2 facilitates seamless charging compatibility between electric vehicles equipped with CCS2/Type 2 plugs and charging stations featuring CCS1/Type 1 connectors. With robust construction and adherence to stringent safety standards, this adapter ensures reliable and efficient charging operations for electric vehicle owners.

Compatibility:

• Car Charger Side: CCS2/Type 2
• Charger Side: CCS1/Type 1

 Features:

• Enhanced Compatibility: Allows vehicles with CCS2/Type 2 plugs to connect and charge at CCS1/Type 1 charging stations, expanding charging options and compatibility for electric vehicle owners.
• High-Speed Charging: Rated for a maximum operating current of 400A DC / 32A AC and a maximum operating voltage of 1000V DC, enabling rapid and efficient charging of electric vehicles.
• Durable Construction: Built with pure copper conductors and an ABS + PC housing, designed to withstand demanding conditions and ensure long-lasting durability.
• User-Friendly Design: Featuring an IP54–IP67 protection rating, this adapter is designed to withstand the elements and provide safe charging experiences in various environments.
• Certified Safety Standards: Certified to meet CE, FCC, and ROHS standards, providing assurance of compliance with regulatory requirements and ensuring safety during charging operations.



Specifications:

Item	Specification
Connector Type	CCS1/Type 1 to CCS2/Type 2
Rated Current	400A DC / 32A AC
Rated Voltage	1000V Max
Conductor	Pure Copper
Housing Material	ABS + PC
Communication Protocol	ISO 15118 / DIN 70121
Ingress Protection	IP54–IP67
Operating Temperature	-30°C to +50°C
Mechanical Durability	≥10,000 Mating Cycles
Dielectric Withstand Voltage	≥2500V DC
Cooling	Natural Air Cooling / Compatible with Partial Liquid Cooling
