9.2" Integrated Streaming Rearview Mirror Dash Cam for Tesla Model 3 / Model Y (2021–2026)

Influencer Video for Tesla Model 3 (2021–2023):

Installation Video:

Showcase Video:

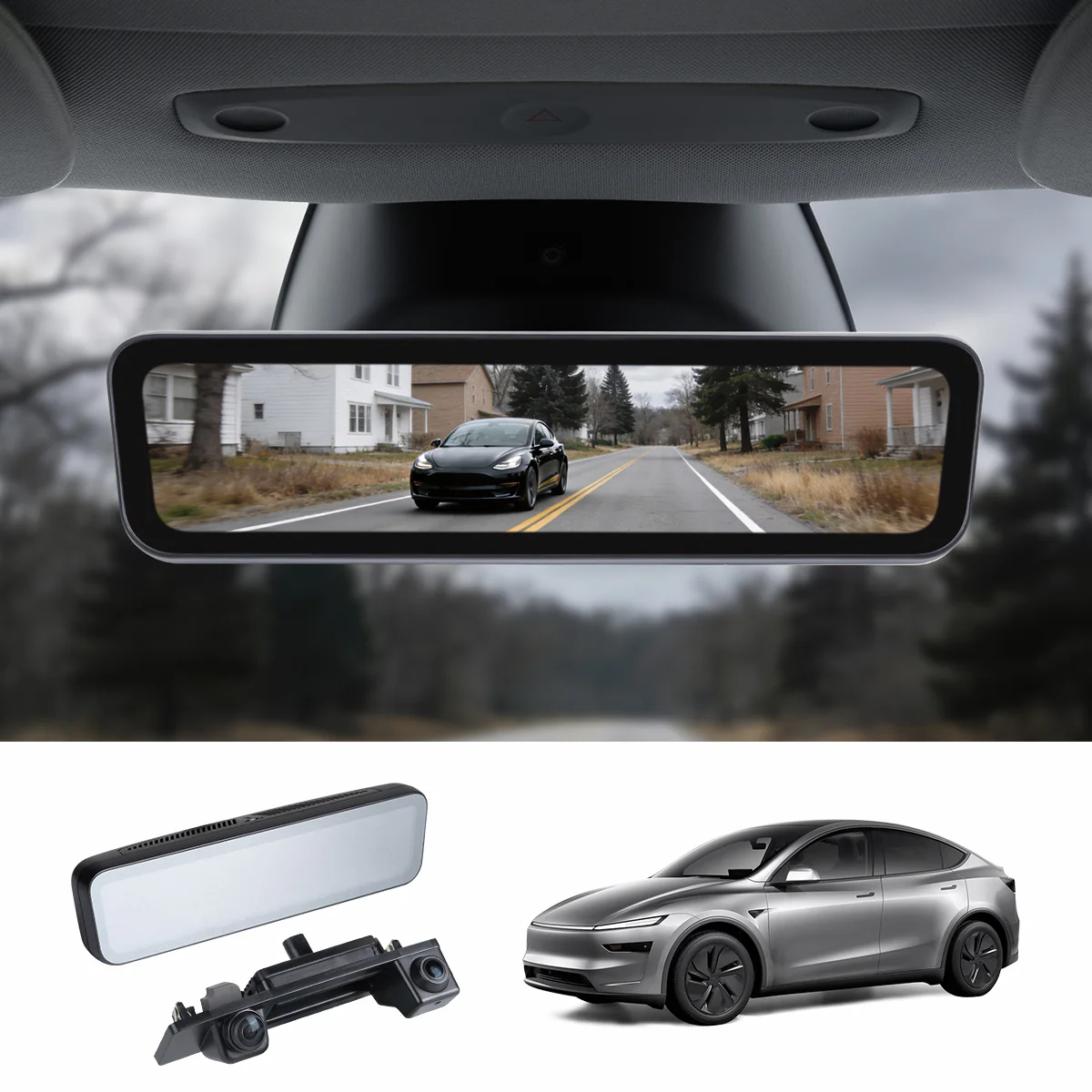

Upgrade your Tesla with this integrated streaming rearview mirror system designed for wider visibility and enhanced driving safety. This digital rearview mirror delivers a real-time HD rear camera feed, eliminating blocked views caused by passengers or cargo.

Features:

• Tesla Dedicated Integrated Camera Module: Specifically engineered for Tesla, this upgraded module ensures stable structural positioning and long-term performance reliability.
  • Precision structural alignment
  • Reduced vibration at high speed
  • Stable image positioning over time



• Hydrophobic Lens Technology: Unlike standard factory lenses that retain water droplets, this upgraded rear camera actively repels moisture for consistently clear streaming visibility.
  • No water streak distortion
  • Clear image immediately after rain
  • Improved wet-condition safety
  • Reduced need for manual cleaning


• Expanded Wide-Angle Rear Visibility: Significantly broader field of view compared to traditional mirrors — with adjustable vertical perspective to match your driving position.
  • Reduced blind spots
  • Safer reversing and lane changes
  • Customizable viewing alignment


• Real-Time HD Streaming with Dual Camera Recording: Replaces traditional mirror reflection with a real-time digital rear feed while simultaneously recording front and rear footage for continuous protection.
  • Front & rear dual-channel recording
  • Split-screen display
  • Loop recording support
  • WiFi connectivity for mobile access
• Ultra-Clear Night Vision with Anti-Glare Display: Equipped with HDR night vision and an anti-glare touchscreen display, ensuring sharp, balanced visibility in low light, rain, fog, or strong backlight conditions.



FAQ:

• Why install a streaming rearview mirror?
  It provides a wider and clearer rear view than the stock mirror, especially helpful with rear obstructions, at night, or in bad weather.
• How does it work?
  Once the vehicle starts, the mirror displays a live rear view from the rear-mounted HD camera.You can adjust the view by swiping the screen or turn it off anytime to use it as a normal mirror.
• Does it work well at night or in rain?

  Yes. HDR imaging and an IP68 waterproof rear camera keep the image clear in low light, rain, fog, or strong sunlight.

• Is there any lag in the video feed?
  Virtually none. The video feed is real-time and matches what’s happening behind your car.
• Is installation difficult?
  Not at all. With the step-by-step installation video, most users can install it themselves.
  Installation Manual for Model 3 Highland 2024+: [View full instructions here]
  Customer support available anytime at [email protected].
• Why the streaming device won’t turn on or powers off unexpectedly?
  Please check that the power connection is secure and properly installed.
• Why it can’t record video?
  1.Before you use, make sure a TF card is properly inserted.
  2.Do not insert or remove the TF card while the device is operating to avoid damage.
  3.Pay attention to the correct orientation of the TF card. Incorrect insertion may damage the device or the card.
  4.If the TF card is not compatible, reinsert it or try a different TF card.
  5.The device supports TF cards up to 128GB.
• Why the camera angle looks too high?
  Swipe up or down on the touchscreen to adjust the viewing angle.
• Why the image looks blurry?
  Make sure the protective film is removed and the lens is clean.
• Why the screen is frozen or unresponsive?
  Press the reset button on the back of the screen to restart the system.



Technical Specifications:

Category	Specification
Main Unit
Processor	SA230
Memory	256MB DDR3
Operating Voltage	12V / 1A
Standby Power Consumption	≤ 1mA
Image Format	MJPEG
Video Compression	H.264/TF
Storage	Supports 32GB–128GB TF Card
Operating Temperature	−30°C to 70°C
Display
Display Type	IPS
Resolution	1920 × 384
Screen Size	9.2 inch
Brightness	Up to 3000 cd/m²
Recording & Playback	Supported
Auto Recording	Supported
Wi-Fi Hotspot	Supported
Rear Camera
Resolution	1920 × 1080 (Full HD)
Sensor	Sony 462
Field of View	90° (H) / 60° (V)
Frame Rate	50 FPS
Aperture	F1.8
Latency	≤ 60 ms
Signal Type	Digital
Lens Structure	All-glass (4G + 2P + 1IR)
Waterproof Rating	IP68
Front Camera
Resolution	2560 × 1440 (2K)
Sensor	Sony 335
Field of View	105° (H) / 56° (V)
Frame Rate	25 FPS
Aperture	F1.6
Latency	≤ 60 ms
Signal Type	Digital
Waterproof Rating	IP5K (Interior Mount)
